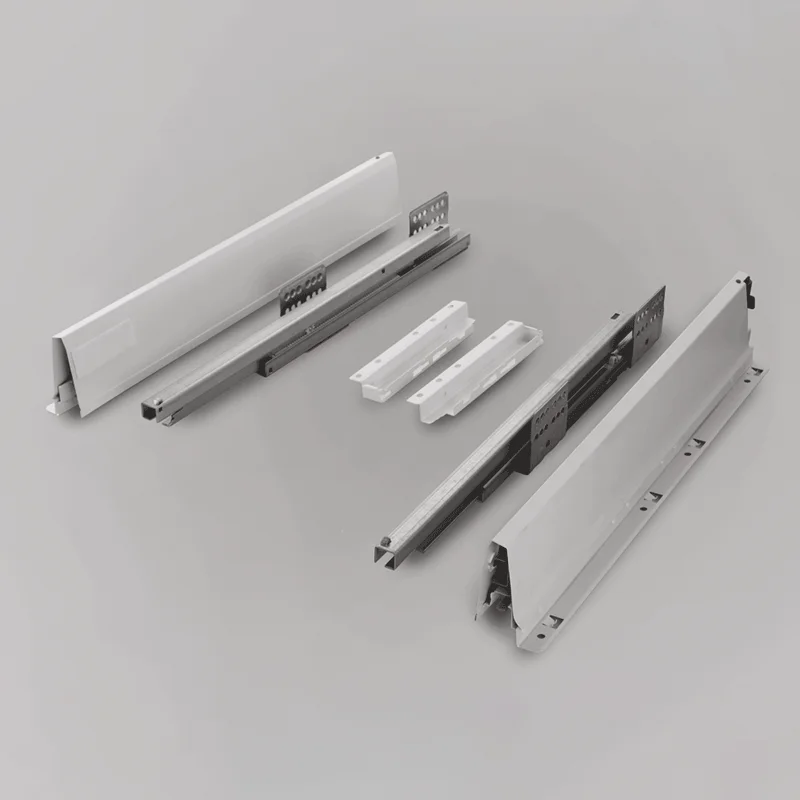

SQUARE INNOTECH
DESCRIPTION
Suitable for Drawer Depth: 500mm
Weight Capacity: 45 Kgs
Full extension with soft closing system
3D Adjustments
LW-Inside Cabinet Width
Bottom panel width=Inside Cabinet width-19±0.5
Bottom panel length=Runner length-10mm
Bottom panel length=Runner length-10mm
Back panel height=63mm
Back panel width=Inside Cabinet width-42±0.5
Back panel width=Inside Cabinet width-46±0.5
Back panel width=Inside Cabinet width-46±0.5
COMPONENTS
SPECIFICATIONS
|
ITEM CODE |
DEPTH |
COLOUR |
HEIGHT |
|---|---|---|---|
|
EP-036 SQUARE 4″ |
500 mm |
Silky White |
90mm |

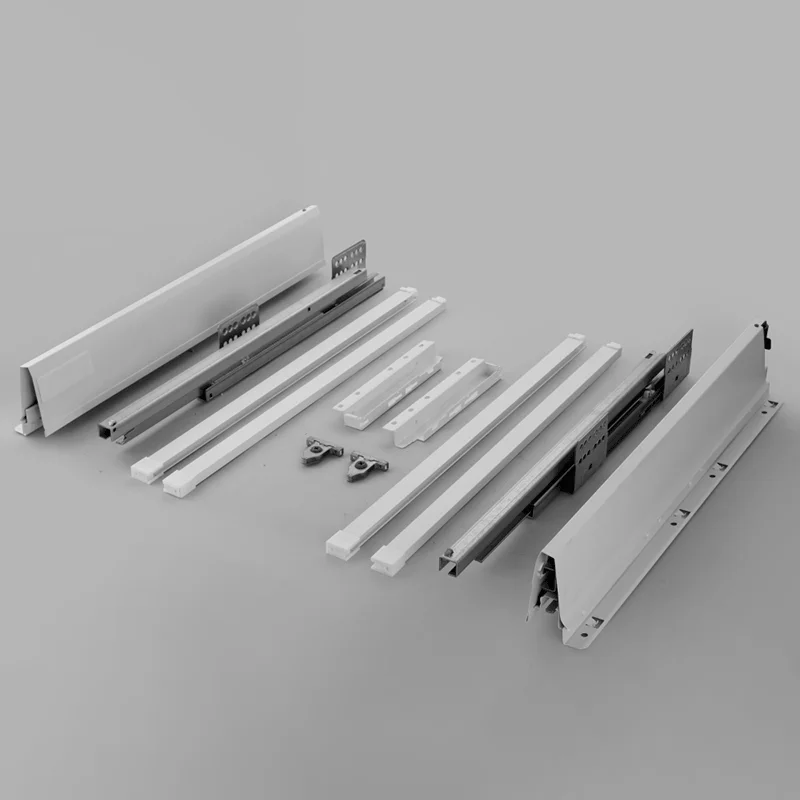

SQUARE INNOTECH WITH BAR
DESCRIPTION
Suitable for Drawer Depth: 500mm
Weight Capacity: 45 Kgs
Full extension with soft closing system
3D Adjustments
LW-Inside Cabinet Width
Bottom panel width=Inside Cabinet width-19±0.5
Bottom panel length=Runner length-10mm
Bottom panel length=Runner length-10mm
Back panel height=63mm
Back panel width=Inside Cabinet width-42±0.5
Back panel width=Inside Cabinet width-46±0.5
Back panel width=Inside Cabinet width-46±0.5
COMPONENTS
SPECIFICATIONS
|
ITEM CODE |
DEPTH |
COLOUR |
HEIGHT |
|---|---|---|---|
|
EP-036A SQUARE 6″ |
500 mm |
Silky White |
170mm |
|
EP-036A SQUARE 8″ |
500 mm |
Silky White |
205mm |

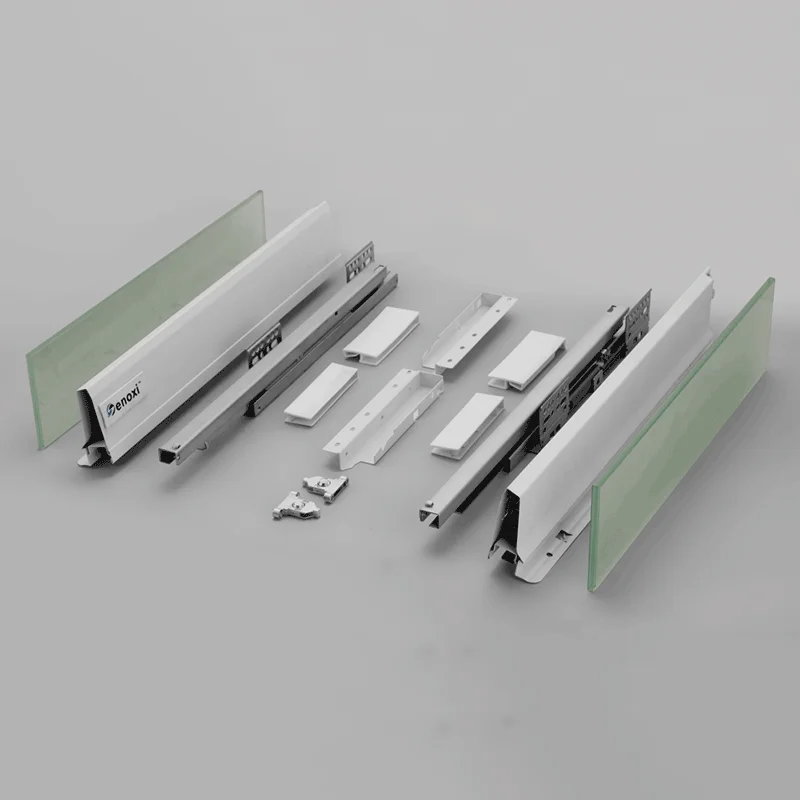

SQUARE INNOTECH WITH GLASS BAR
DESCRIPTION
Suitable for Drawer Depth: 500mm
Weight Capacity: 45 Kgs
Full extension with soft closing system
3D Adjustments
LW-Inside Cabinet Width
Bottom panel width=Inside Cabinet width-19±0.5
Bottom panel length=Runner length-10mm
Bottom panel length=Runner length-10mm
Back panel height=63mm
Back panel width=Inside Cabinet width-42±0.5
Back panel width=Inside Cabinet width-46±0.5
Back panel width=Inside Cabinet width-46±0.5
COMPONENTS
SPECIFICATIONS
|
ITEM CODE |
DEPTH |
COLOUR |
HEIGHT |
|---|---|---|---|
|
EP-036B GLASS 8″ |
500 mm |
White |
200mm |
